June 10, 2007 - I didn't just bolt on body panels this weekend.
I also finished the installation of the driver's seat, and that involved finding a way to bolt in the sub belt. Naturally, the anchor point has to go right in the middle of a longitudinal frame rail. This means I can't access the back side of it to put in a nut.

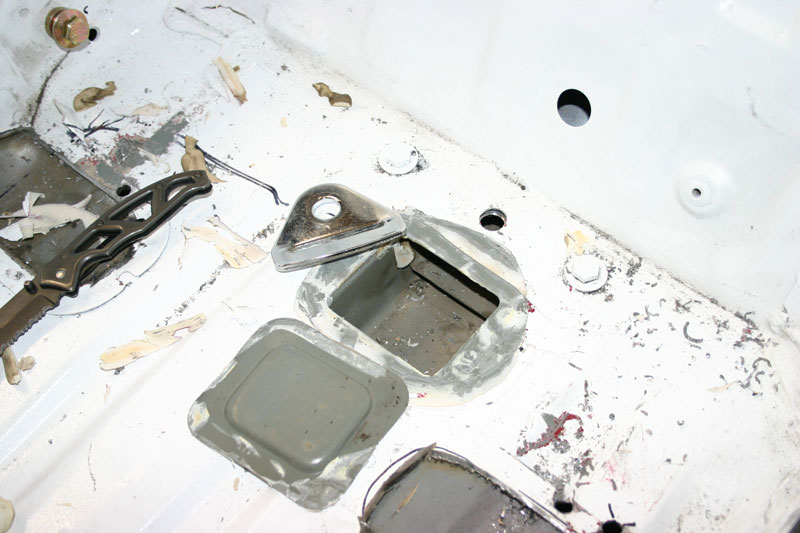

But check this out - Mazda put a nice little access panel in the floor for the frame rail! After cutting out a bit of seam sealer, the panel popped off. As an added bonus, I was able to feel that there were multiple layers at the base of the bulkhead so I had a very solid anchor point. A bit of "Automotive Goop" (a nice silicone glue) and the panel was back in place. This made me happy, as I was expecting to have to build some sort of odd bracketry.
I've also learned that it's hard to take detail pictures of a blinding white car. Sorry about the over-exposed shot here.
tags: seats, safety |
